I am new to this forum and I hope I am in the right forum to get answers to a couple of questions.
I own a 2002 Ranger Edge, 4x2, 3.0L, with torsion bars cranked to give maximum lift.
I have had no problems with this set up. My tires wear evenly and I have noticed no unusual wear on the steering components.
My question concerns what is the "backspace" the stock Aluminum wheel .
I am, over the winter, going to replace the factory spindles with 4" lifted spindles. I want to use 33x14.5x15 tires if I can find any with a tread pattern that is not very agressive). I know I will have to get new wheels at least 10" in width.
Does anyone know what backspacing should I order on the wheels in order to prevent the wheel or tire rubbing other parts of my truck? I am looking to have the tires extend 2-3" outside the stock fender flares.
I own a 2002 Ranger Edge, 4x2, 3.0L, with torsion bars cranked to give maximum lift.
I have had no problems with this set up. My tires wear evenly and I have noticed no unusual wear on the steering components.
My question concerns what is the "backspace" the stock Aluminum wheel .
I am, over the winter, going to replace the factory spindles with 4" lifted spindles. I want to use 33x14.5x15 tires if I can find any with a tread pattern that is not very agressive). I know I will have to get new wheels at least 10" in width.
Does anyone know what backspacing should I order on the wheels in order to prevent the wheel or tire rubbing other parts of my truck? I am looking to have the tires extend 2-3" outside the stock fender flares.
Last edited by RazorEdge; 11-10-2013 at 09:50 AM. Reason: left oou a couple of details.
#2
To continue our conversation from the other thread.....
The smaller the backspacing number is - the further a given wheel will 'stick out'.
Most guys get wheels with backspacing between 3"-4" (Stock is 4.5").
In order to stick that far out, you might want something closer to the 3.25" or 3.5" side of things - however, use that 'chart' I posted to help guide you:
7" wide wheel w/ 4.50" Backspacing (+12 offset) - meaning 2.50" outboard. (Stock)
8" wide wheel w/ 3.25" Backspacing (-32 offset) - meaning 4.75" outboard. (aka - 2.25" further "out" than stock as well as being 1.25" inward less than stock)
8" wide wheel w/ 3.75" Backspacing (-19 offset) - meaning 4.25" outboard. (aka - 1.75" further "out" than stock as well as being .75" inward less than stock)
8" wide wheel w/ 4.00" Backspacing (-12 offset) - meaning 4.00" outboard. (aka - 1.50" further "out" than stock as well as being .50" inward less than stock)
8" wide wheel w/ 4.50" Backspacing (0 offset) - meaning 3.50" outboard. (aka - 1.00" further "out" than stock as well as being the same distance inward as stock)
10" wide wheel w/ 3.25" Backspacing (-57 offset) - meaning 6.75" outboard. (aka - 4.25" further "out" than stock as well as being 1.25" inward less than stock)
10" wide wheel w/ 3.50" Backspacing (-51 offset) - meaning 6.50" outboard. (aka - 4.00" further "out" than stock as well as being 1.00" inward less than stock)
10" wide wheel w/ 3.75" Backspacing (-44 offset) - meaning 6.25" outboard. (aka - 3.75" further "out" than stock as well as being .75" inward less than stock)
10" wide wheel w/ 4.00" Backspacing (-38 offset) - meaning 6.00" outboard. (aka - 3.50" further "out" than stock as well as being .50" inward less than stock)
10" wide wheel w/ 4.50" Backspacing (-25 offset) - meaning 5.50" outboard. (aka - 3.00" further "out" than stock as well as being the same distance inward as stock)
Just in case: The easiest way to measure backspace is to lay the wheel face down onto the ground so the backside of the wheel is facing up. Take a straight edge and lay it across the flange of the wheel. Take a tape measure and measure the distance from the hub mounting to where it crosses the straight edge. This distance is the backspacing measurement of the wheel.
The smaller the backspacing number is - the further a given wheel will 'stick out'.
Most guys get wheels with backspacing between 3"-4" (Stock is 4.5").
In order to stick that far out, you might want something closer to the 3.25" or 3.5" side of things - however, use that 'chart' I posted to help guide you:
7" wide wheel w/ 4.50" Backspacing (+12 offset) - meaning 2.50" outboard. (Stock)
8" wide wheel w/ 3.25" Backspacing (-32 offset) - meaning 4.75" outboard. (aka - 2.25" further "out" than stock as well as being 1.25" inward less than stock)
8" wide wheel w/ 3.75" Backspacing (-19 offset) - meaning 4.25" outboard. (aka - 1.75" further "out" than stock as well as being .75" inward less than stock)
8" wide wheel w/ 4.00" Backspacing (-12 offset) - meaning 4.00" outboard. (aka - 1.50" further "out" than stock as well as being .50" inward less than stock)
8" wide wheel w/ 4.50" Backspacing (0 offset) - meaning 3.50" outboard. (aka - 1.00" further "out" than stock as well as being the same distance inward as stock)
10" wide wheel w/ 3.25" Backspacing (-57 offset) - meaning 6.75" outboard. (aka - 4.25" further "out" than stock as well as being 1.25" inward less than stock)
10" wide wheel w/ 3.50" Backspacing (-51 offset) - meaning 6.50" outboard. (aka - 4.00" further "out" than stock as well as being 1.00" inward less than stock)
10" wide wheel w/ 3.75" Backspacing (-44 offset) - meaning 6.25" outboard. (aka - 3.75" further "out" than stock as well as being .75" inward less than stock)
10" wide wheel w/ 4.00" Backspacing (-38 offset) - meaning 6.00" outboard. (aka - 3.50" further "out" than stock as well as being .50" inward less than stock)
10" wide wheel w/ 4.50" Backspacing (-25 offset) - meaning 5.50" outboard. (aka - 3.00" further "out" than stock as well as being the same distance inward as stock)
Just in case: The easiest way to measure backspace is to lay the wheel face down onto the ground so the backside of the wheel is facing up. Take a straight edge and lay it across the flange of the wheel. Take a tape measure and measure the distance from the hub mounting to where it crosses the straight edge. This distance is the backspacing measurement of the wheel.
Last edited by logan03CO; 11-10-2013 at 10:14 AM.
#3
God...I hate to show my ignorance like this. And I DO appreciate your patience.
So let me see if I have this right...the smaller the backspacing number the farther the outside flange of the wheel extends from the mounting flange of the wheel? And the smaller the backspacing number, the "depth" of the back of the wheel (from mounting flange to the inside flange) will be less...?
So let me see if I have this right...the smaller the backspacing number the farther the outside flange of the wheel extends from the mounting flange of the wheel? And the smaller the backspacing number, the "depth" of the back of the wheel (from mounting flange to the inside flange) will be less...?
#4
Another example:
You have two wheels - both 8" wide.
Wheel 'A' has a backspacing of 4".
Wheel 'B' has a backspacing of 3".
Wheel 'A' will be 'sucked' in towards the brakes an additional inch when compared to wheel 'B'.
Another way of saying it:
For a given wheel width, the larger the backspacing number is - the more tucked 'in' it will be.
So the invert is also true - the smaller the backspacing number is - the more pushed 'out' it will be.
Last edited by logan03CO; 11-10-2013 at 10:45 AM.
#5
Thanks...my dad used to say I was on the "hard headed" side. Sometimes I gotta have things explained several times before it sinks in.
I'd like to give you some positive"feedback" in light of your understanding of, and ability to grasp, things that a person like me just can't get their head wrapped around. How do I go about offering "feedback"?
I'd like to give you some positive"feedback" in light of your understanding of, and ability to grasp, things that a person like me just can't get their head wrapped around. How do I go about offering "feedback"?
#6
#7
On top of what Logan has pointed out.......something I don't see mentioned. 1: I've never heard of 4" lift spindles.....only 3" for Edges and 3.5" for coil-spring 2wd's. 2: The spindles (at least on an Edge 2wd truck) widen the track width significantly...by about 2" per side. Significant enough that I don't suggest 10" wide rims for that application without fiberglass fenders up front.
A really good local friend of mine put a 3" Fabtech spindle lift on his 2003 2wd Edge. He had 10" rims. The width of the entire truck, especially after the spindles, forced him to put on fiberglass fenders. Without the extended fiberglass fenders, the front tires stuck outside of the fender flare a good THREE inches. His wheel backspace was typical of 15x10 wheels....3.625".
Just something to think about.... Stick with 8's.
A really good local friend of mine put a 3" Fabtech spindle lift on his 2003 2wd Edge. He had 10" rims. The width of the entire truck, especially after the spindles, forced him to put on fiberglass fenders. Without the extended fiberglass fenders, the front tires stuck outside of the fender flare a good THREE inches. His wheel backspace was typical of 15x10 wheels....3.625".
Just something to think about.... Stick with 8's.
#8
Shane...
4" lift spindles are out there. MaxxTrac and Doetsch Manufacture them. I've found them on e-Bay. Even Amazon has a listing for them. All for 4x2. All for torsion bar suspensions.
I'm probably going to have to accept tires 12.50" wide. I haven't been able to find 14.50" wide tires unless they have a tread pattern that is of King Kong capabilities. So I will probably go with 15x8" wheels with 3.25" Backspacing. That should give me, from tires alone an additional width of 4.75 ". Plus the 4" gained by the spindles is what I think I'm looking for. So taking all these factors (wheel width, back spacing, and the information you have provided) I think I've hit on the combination of wheels and tires I've been wanting.
I appreciate your input on my "problem" very much...
Butch
4" lift spindles are out there. MaxxTrac and Doetsch Manufacture them. I've found them on e-Bay. Even Amazon has a listing for them. All for 4x2. All for torsion bar suspensions.
I'm probably going to have to accept tires 12.50" wide. I haven't been able to find 14.50" wide tires unless they have a tread pattern that is of King Kong capabilities. So I will probably go with 15x8" wheels with 3.25" Backspacing. That should give me, from tires alone an additional width of 4.75 ". Plus the 4" gained by the spindles is what I think I'm looking for. So taking all these factors (wheel width, back spacing, and the information you have provided) I think I've hit on the combination of wheels and tires I've been wanting.
I appreciate your input on my "problem" very much...
Butch
#10
Shane...
4" lift spindles are out there. MaxxTrac and Doetsch Manufacture them. I've found them on e-Bay. Even Amazon has a listing for them. All for 4x2. All for torsion bar suspensions.
I'm probably going to have to accept tires 12.50" wide. I haven't been able to find 14.50" wide tires unless they have a tread pattern that is of King Kong capabilities. So I will probably go with 15x8" wheels with 3.25" Backspacing. That should give me, from tires alone an additional width of 4.75 ". Plus the 4" gained by the spindles is what I think I'm looking for. So taking all these factors (wheel width, back spacing, and the information you have provided) I think I've hit on the combination of wheels and tires I've been wanting.
I appreciate your input on my "problem" very much...
Butch
4" lift spindles are out there. MaxxTrac and Doetsch Manufacture them. I've found them on e-Bay. Even Amazon has a listing for them. All for 4x2. All for torsion bar suspensions.
I'm probably going to have to accept tires 12.50" wide. I haven't been able to find 14.50" wide tires unless they have a tread pattern that is of King Kong capabilities. So I will probably go with 15x8" wheels with 3.25" Backspacing. That should give me, from tires alone an additional width of 4.75 ". Plus the 4" gained by the spindles is what I think I'm looking for. So taking all these factors (wheel width, back spacing, and the information you have provided) I think I've hit on the combination of wheels and tires I've been wanting.
I appreciate your input on my "problem" very much...
Butch
Toyo offers a 33x13.50R15 in their Mud Terrain, so that's something to consider. 14.50's are hard to find now in that small of a diameter tire.
Wheel specs sound good....what wheels are you going with? That little backspace is kind of rare on a high production 15x8. Usually they are 3.625" to 4" backspace. Same with 15x10.
Being an on-call tow truck driver is who we have to thank for that! lol.
#12
There are other "classic" styled wheels out there that are far easier to use for alot less money or for just a little more money than the S/S's, you can have the wildly popular in the classic car world American Racing Torque Thrust II's...with a decent backspace.

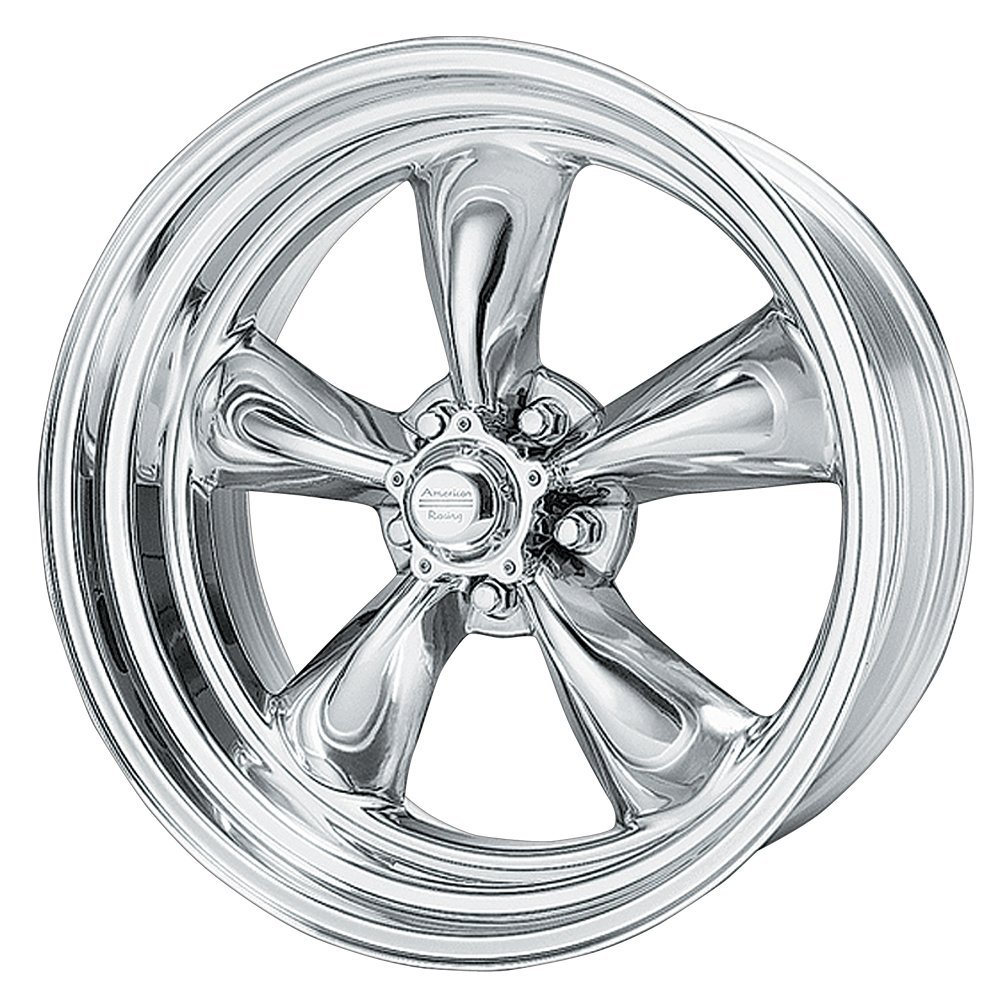

Clicky: http://www.summitracing.com/parts/are-5155865/overview/

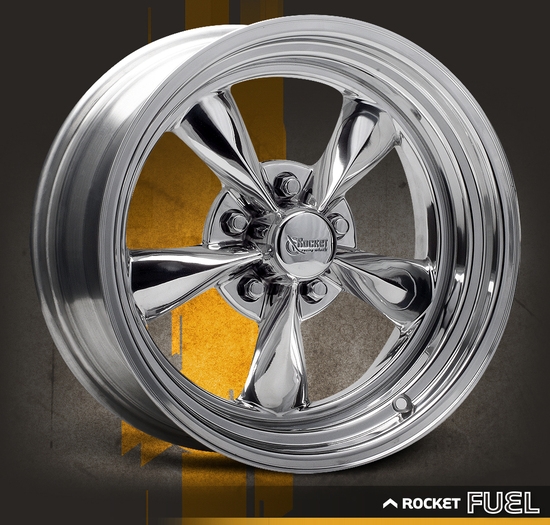

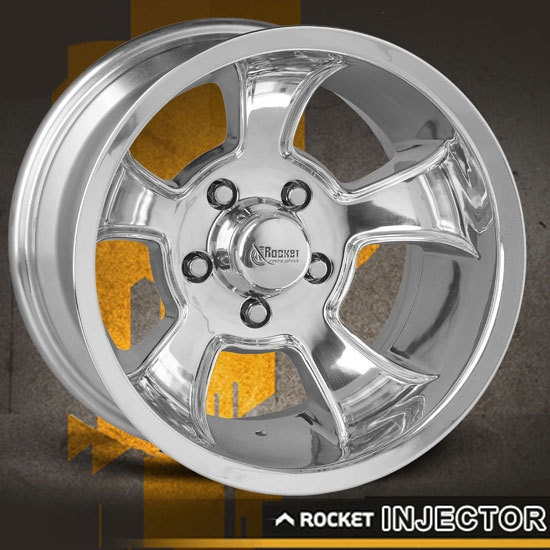

Rocket Racing wheels also has the same 3.75bs on 15x8 wheels that are classicly styled and around the same price as the S/S's and Torque Thrust II's... clicky: Rocket Racing Mag Wheels | Free Shipping From Selected Dealers!
