Help with red Vacuum lines
#1
Help with red Vacuum lines
So does the vacuum line (top arrow) suppose to plug into a double connector at the bottom aarow? Right now there is only a single connector at the bottom arrow where one red line connects into. I have now idea where it is suppose to be. Thinking a mechanic was screwing with the previous owner. I got the truck cheep. Just want to fix it and keep the check engine light off. The red lines come from the EGR vacuum regulator and are traced to a round ball on the left of the engine. Thank you for the help.
#3
#4

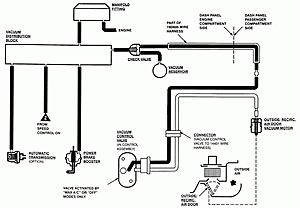

The solenoid by your coil pack is the EGR solenoid. One line should be going to the EGR and the other to the vacuum from intake manifold. The big black ball is vacuum storage for the vent system. You need to trace back the lines to verify where they lead to. It looks like someone did a hatchet job. Do you know what your trouble code is? The diagram may not be exact but it will give you a good idea. It is supposedly for a 2000 3.0L.
Last edited by Grumpa; 04-01-2018 at 04:03 AM. Reason: ETA
#6
Depending on your mileage, you may have to get a new IAC if cleaning doesn't resolve that issue but, a vacuum leak, like the one you have, can cause idle problems as well as other conditions, such as a lean condition. When the engine thinks it's running lean it will try to compensate with more fuel. Resolving the vacuum leak may resolve the other issues, so that would be the first thing I would do.
#7
THANK YOU FOR YOUR HELP GRUMPA! After looking and looking on where an extra vacuum hose would go, i peeked under the coil pack and found a vacuum line inlet for the hose to go. I about sh** myself. I have to remove the tape from the housing the hose was taped in. Once removed from the housing, i did a dry run to see if it would reach. I couldnt do it with the coil pack in place. So i quickly removed the coil pack out of the way and the hose plugged right into the fuel injector. I am so thankful to have found it. I was praying for help. My Easter prayer was heard. Even in California lol.

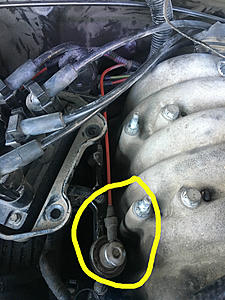

However, that was really really messed up of Midas - San Luis Obispo to have done that to that College kid I bought this thing from. The vacuum hose was deliberately removed from the fuel injector and taped into another housing as shown in the first picture of my post. Truck has been idling for 15 minutes now and it sounds waaaaaaaaaayyyyyyy better. I can tell there is no misfire just from the sound of the engine.
